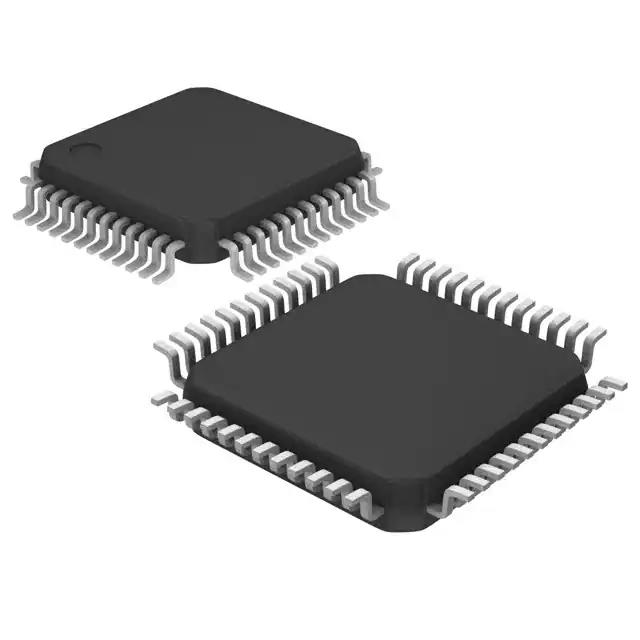

S912ZVC12F0VLFR

Manufacturer: NXP USA Inc.

Manufacturer Product Number: S912ZVC12F0VLFR

Description: IC MCU 16BIT 128KB FLASH 48LQFP

Detailed Description: S12Z series Microcontroller IC 16-Bit 32MHz 128KB (128K x 8) FLASH 48-LQFP (7x7)



Category

Integrated Circuits (ICs)

Embedded

Microcontrollers

MfrNXP USA Inc.
SeriesS12 MagniV
PackageTape & Reel (TR)
Product StatusActive
Core ProcessorS12Z
Core Size16-Bit
Speed32MHz
ConnectivityCANbus, I²C, SCI, SPI
PeripheralsDMA, POR, PWM, WDT

Number of I/O28
Program Memory Size128KB (128K x 8)
Program Memory TypeFLASH
EEPROM Size2K x 8
RAM Size8K x 8
Voltage - Supply (Vcc/Vdd)3.5V ~ 40V
Data ConvertersA/D 10x10b; D/A 1x8b
Oscillator TypeInternal
Operating Temperature-40°C ~ 105°C (TA)
Mounting TypeSurface Mount
Package / Case48-LQFP
Supplier Device Package

48-LQFP (7x7

Base Product NumberS912
