Mfr

Vishay Dale Thin Film

Series

MPM

Circuit Type

Voltage Divider

Resistance (Ohms)

1k, 9k

Tolerance

±0.1%

Number of Resistors

2

Resistor Matching Ratio

±0.05%

Resistor-Ratio-Drift

±2ppm/°C

Number of Pins

3

Power Per Element

100mW

Temperature Coefficient

±25ppm/°C

Operating Temperature

-55°C ~ 125°C

Applications

Voltage Divider (TCR Matched)

Mounting Type

Surface Mount

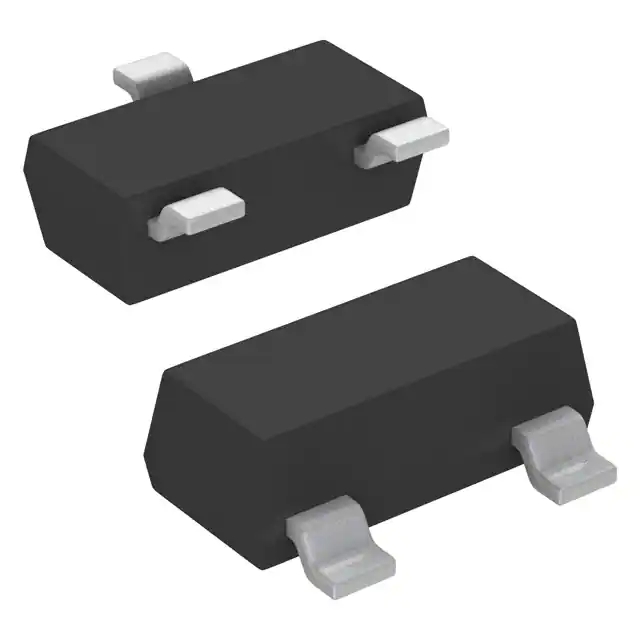

Package / Case

TO-236-3, SC-59, SOT-23-3

Supplier Device Package

SOT-23

Size / Dimension

0.113" L x 0.051" W (2.86mm x 1.30mm)

Height - Seated (Max)

0.040" (1.02mm)
