Mfr

Power Integrations

Series

LinkSwitch®-TN

Output Isolation

Non-Isolated

Internal Switch(s)

Yes

Voltage - Breakdown

700V

Topology

Buck, Buck-Boost, Flyback

Voltage - Supply (Vcc/Vdd)

-

Duty Cycle

69%

Frequency - Switching

66kHz

Fault Protection

Current Limiting, Open Loop, Over Temperature, Short Circuit

Control Features

-

Operating Temperature

-40°C ~ 150°C (TJ)

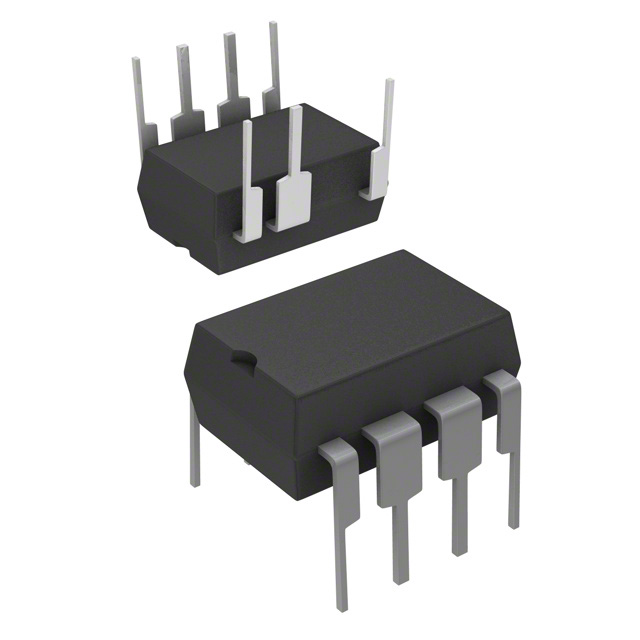

Package / Case

8-DIP (0.300", 7.62mm), 7 Leads

Supplier Device Package

8-PDIP-B

Mounting Type

Through Hole

Base Product Number

LNK304
