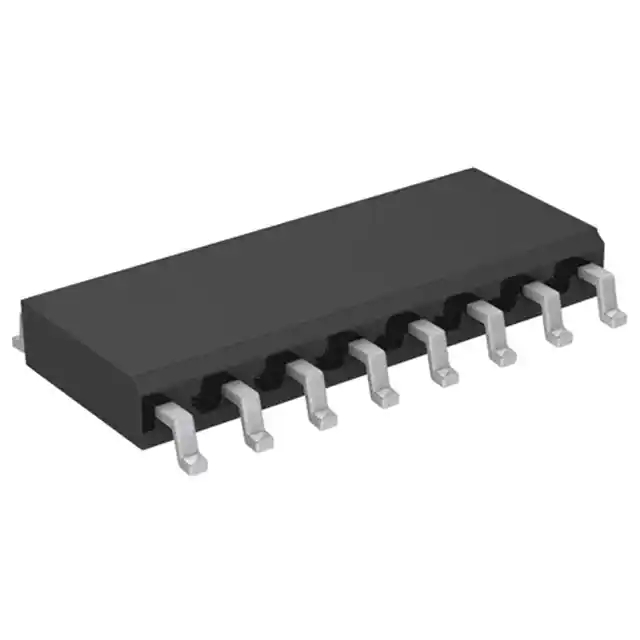

Manufacturer： Renesas Electronics America Inc

Manufacturer Product Number： ISL83202IBZ

Description： IC GATE DRVR HALF-BRIDGE 16SOIC

Detailed Description： Half-Bridge Gate Driver IC Inverting, Non-Inverting 16-SOIC

Category： Integrated Circuits (ICs)；Power Management (PMIC)；Gate Drivers

Mfr： Renesas Electronics America Inc

Series -

Package Tube

Product Status Active

Driven Configuration Half-Bridge

Channel Type Independent

Number of Drivers 4

Gate Type N-Channel MOSFET

Voltage - Supply 8.5V ~ 15V

Logic Voltage - VIL, VIH 1V, 2.5V

Current - Peak Output (Source, Sink) 1A, 1A

Input Type Inverting, Non-Inverting

High Side Voltage - Max (Bootstrap) 70 V

Rise / Fall Time (Typ) 9ns, 9ns

Operating Temperature -55°C ~ 150°C (TJ)

Mounting Type Surface Mount

Package / Case 16-SOIC (0.154", 3.90mm Width)

Supplier Device Package： 16-SOIC

Base Product Number： ISL83202
