Manufacturer: NXP USA Inc.

Manufacturer Product Number: LPC4357JET256,551

Description: IC MCU 32BIT 1MB FLASH 256LBGA

Detailed Description: ARM Cortex-M4/M0 LPC43xx Microcontroller IC 32-Bit Dual-Core 204MHz 1MB (1M x 8) FLASH 256-LBGA (17x17)

Category: Integrated Circuits (ICs); Embedded; Microcontrollers

Mfr: NXP USA Inc.

Series: LPC43xx

Package: Tray

Product Status: Active

Core Processor ARM Cortex-M4/M0

Core Size 32-Bit Dual-Core

Speed 204MHz

Connectivity CANbus, EBI/EMI, Ethernet, I²C, IrDA, Microwire, QEI, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG

Peripherals Brown-out Detect/Reset, DMA, I²S, LCD, Motor Control PWM, POR, PWM, WDT

Number of I/O 164

Program Memory Size 1MB (1M x 8)

Program Memory Type FLASH

EEPROM Size 16K x 8

RAM Size 136K x 8

Voltage - Supply (Vcc/Vdd) 2.2V ~ 3.6V

Data Converters A/D 8x10b; D/A 1x10b

Oscillator Type Internal

Operating Temperature -40°C ~ 105°C (TA)

Mounting Type Surface Mount

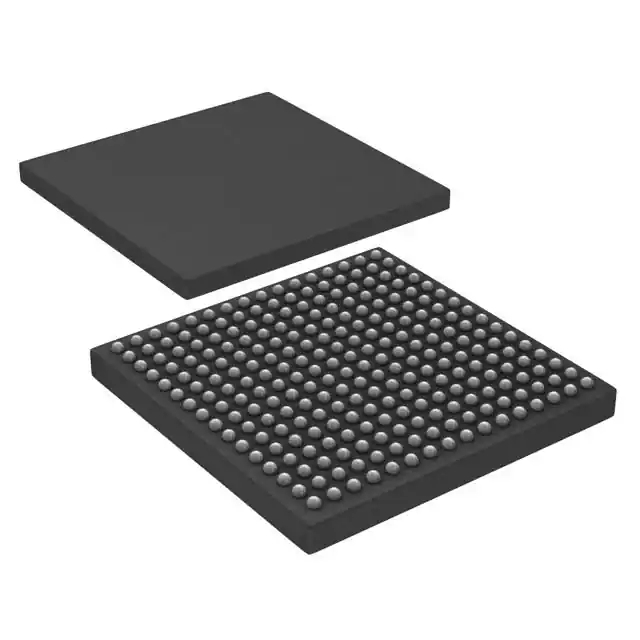

Package / Case 256-LBGA

Supplier Device Package 256-LBGA (17x17)

Base Product Number LPC4357
