Manufacturer：Infineon Technologies

Manufacturer Product Number： IPB036N12N3GATMA1

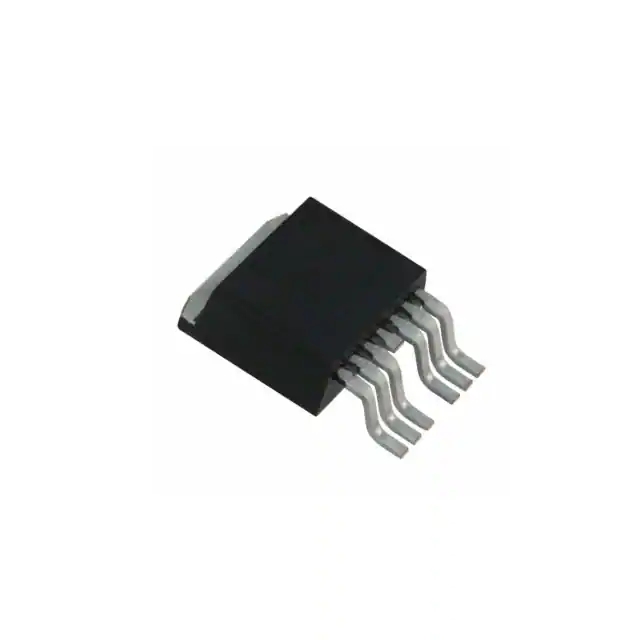

Description： MOSFET N-CH 120V 180A TO263-7

Detailed Description：N-Channel 120 V 180A (Tc) 300W (Tc) Surface Mount PG-TO263-7

Category: Discrete Semiconductor; ProductsTransistors - FETs, MOSFETs - Single

Mfr: Infineon Technologies

Series: OptiMOS

Package: Tape & Reel (TR); Cut Tape (CT)

Product: Status Active

FET Type: N-Channel

Technology: MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss): 120 V

Current - Continuous Drain (Id) @ 25°C 180A (Tc)

Drive Voltage (Max Rds On, Min Rds On) 10V

Rds On (Max) @ Id, Vgs 3.6mOhm @ 100A, 10V

Vgs(th) (Max) @ Id 4V @ 270µA

Gate Charge (Qg) (Max) @ Vgs 211 nC @ 10 V

Vgs (Max) ±20V

Input Capacitance (Ciss) (Max) @ Vds 13800 pF @ 60 V

FET Feature -

Power Dissipation (Max) 300W (Tc)

Operating Temperature -55°C ~ 175°C (TJ)

Mounting Type: Surface Mount

Supplier Device Package: PG-TO263-7

Package / Case: TO-263-7, D²Pak (6 Leads + Tab)

Base Product Number: IPB036
