Manufacturer: STMicroelectronics

Manufacturer Product Number: STPSC20H12CWY

Description: AUTOMOTIVE SIC DIODES

Detailed Description: Diode Array 1 Pair Common Cathode Silicon Carbide Schottky 1200 V 10A Through Hole TO-247-3

Category: Discrete Semiconductor; ProductsDiodes - Rectifiers - Arrays

Mfr:  STMicroelectronics

Series:  Automotive, AEC-Q101, ECOPACK2

Package:  Tube

Product Status:  Active

Diode Configuration:  1 Pair Common Cathode

Diode Type:  Silicon Carbide Schottky

Voltage - DC Reverse (Vr) (Max) 1200 V

Current - Average Rectified (Io) (per Diode) 10A

Voltage - Forward (Vf) (Max) @ If 1.5 V @ 10 A

Speed No Recovery Time:  > 500mA (Io)

Reverse Recovery Time:  (trr) 0 ns

Current - Reverse Leakage @ Vr 60 µA @ 1200 V

Operating Temperature - Junction -40°C ~ 175°C

Mounting Type:  Through Hole

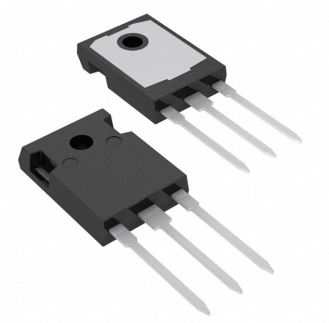

Package / Case:  TO-247-3

Supplier Device Package:  TO-247-3

Base Product Number:  STPSC20
